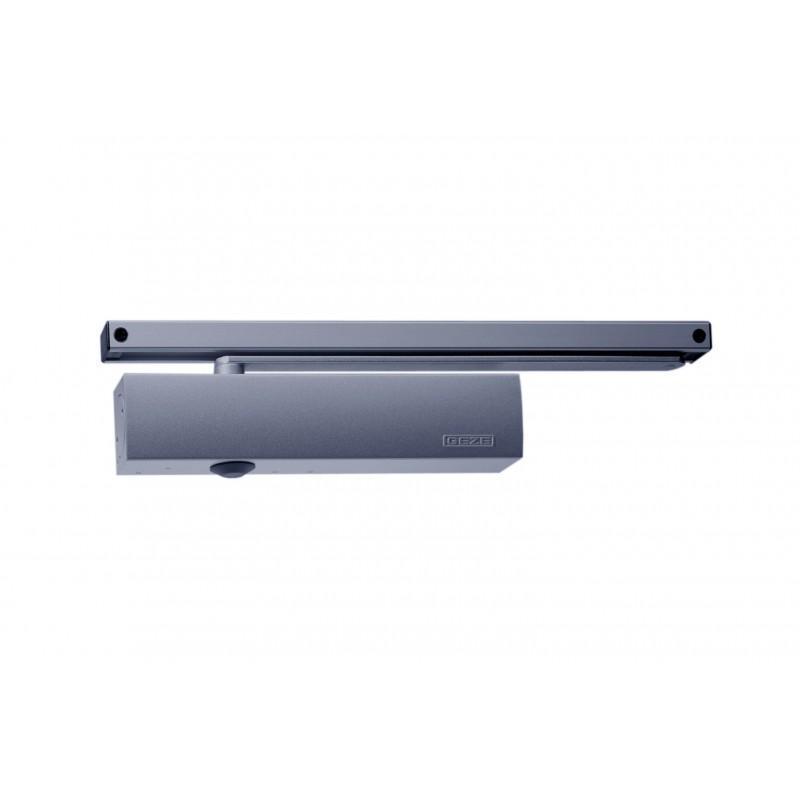

GEZE TS5000 Guide Rail Door Closer

Overhead eccentric rack and pinion door closer with guide rail for single leaf doors with a door leaf width up to 1400mm

AREAS OF APPLICATION

• Two models available:

          TS5000 for Fig. 1/61 – EN 2-6 Pull side mounting/push side transom mounting
          TS5000L for Fig. 66/9 – EN 2-6 Push side mounting/pull side frame mounting

PRODUCT FEATURES

• Closing force of EN 2-6 with variable spring adjustment
• Fully certified to BS EN 1154
• Suitable for up to 1400mm wide door leafs
• Can be used for right and left hand single action doors without conversion
• Certifire approved - CF145 certificate
• For fire and smoke protection doors – FD120 minute fire rating
• Hydraulic latching action
• Adjustable closing speed
• Integrated backcheck
• Visual closing force display
• All functions can be set from the front of the closer
• Silver finish
• Body dimensions: 287mm x 47mm x 60mm
