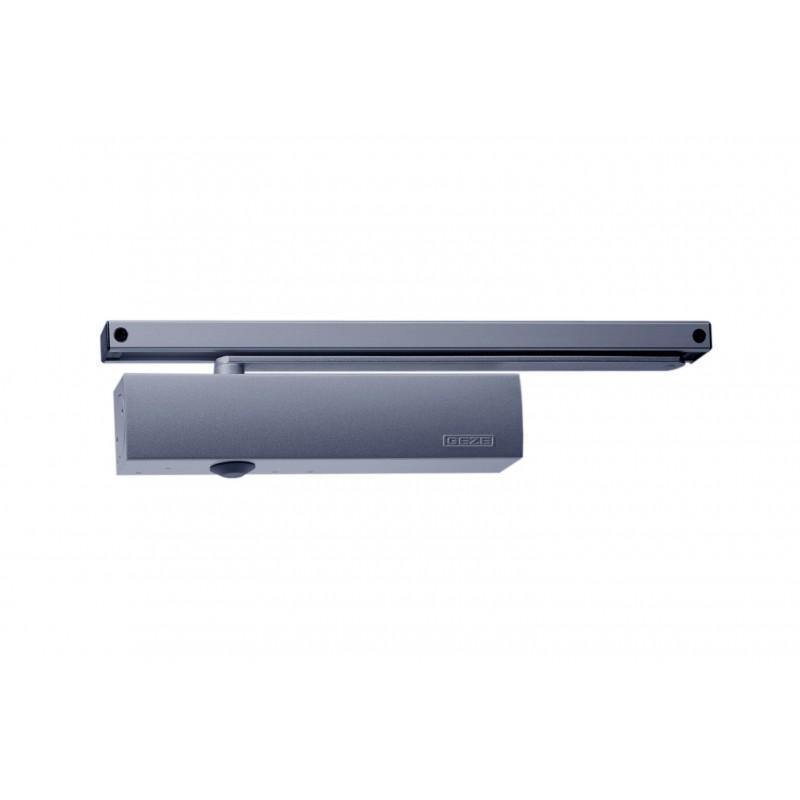

Silver GEZE TS5000E slide arm door closer, adjustable from EN 2 to 6.

GEZE TS5000 door closer is a surface mounted eccentric rack and pinion door closer with guide rail, for use on single action doors with max door leaf width of up to 1400mm, CE marked and Certifire Approved CF 145 for use on smoke and fire door. The closing force to EN 1154 is a spring adjustable power size EN 2-6 and comes with adjustable closing speed and latching action.

AREAS OF APPLICATION

• Two models available:

          TS5000 for Fig. 1/61 – EN 2-6 Pull side mounting/push side transom mounting
          TS5000L for Fig. 66/9 – EN 2-6 Push side mounting/pull side frame mounting

PRODUCT FEATURES

• Closing force of EN 2-6 with variable spring adjustment
• Fully certified to BS EN 1154
• Suitable for up to 1400mm wide door leafs
• Can be used for right and left hand single action doors without conversion
• Certifire approved - CF145 certificate
• CE Marked
• For fire and smoke protection doors – FD120 minute fire rating
• Hydraulic latching action
• Adjustable closing speed
• Integrated backcheck
• Visual closing force display
• All functions can be set from the front face of the closer
• Silver finish
• Body dimensions: 287mm x 47mm x 60mm
