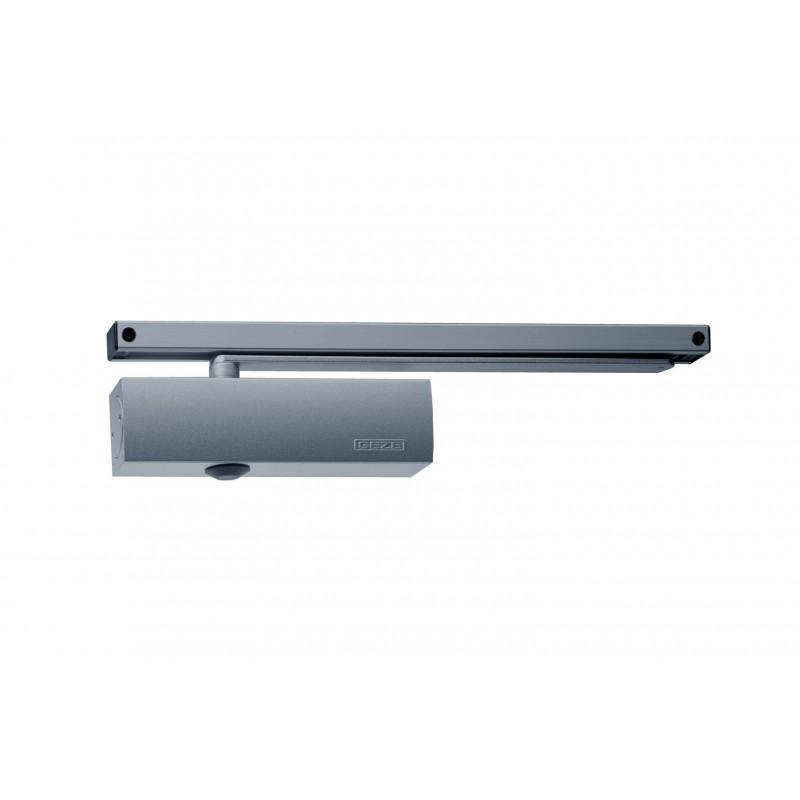

GEZE TS3000V slide arm door closer, adjustable from EN 1 - 4.

GEZE TS3000V door closer is a surface mounted rack and pinion door closer with guide rail, for use on single action doors with max door leaf width of up to 1100mm, CE marked and Certifire Approved CF 145, for use on smoke and fire door. The closing force to EN 1154 is a spring adjustable power size EN 1-4 and comes with adjustable closing speed and latching action.

Area of application:

          Fig. 1 – Pull side mounting
          Fig. 61 – Push side transom mounting

Key Product Features:

• Medium duty door closer
• Slide track for smooth door operation
• For single action doors
• Can be used for both right and left hand doors without conversion
• Suitable for doors with leaf widths up to 1100 mm

• Closing force, spring adjustable power size EN 1-4

• Certified to BS EN 1154
• CE marked
• Certifire Approved – CF145
• For fire and smoke protection doors
  Timber doors FD120 minute fire rating
  Steel doors up to FD240 minute fire rating
• Hydraulic adjustable latch action and closing speed
• Maximum opening angle 180°
• All functions can be adjusted and set from the front face of the closer
• Body dimensions: 226mm x 46mm x 60mm
• Guide rail dimensions: 448.5mm x 30.5mm x 20.5mm
