GEZE TS500NV EN 1-4 Cam Action Floor Spring

GEZE TS500NV Cam Action floor spring EN 1-4 with non hold open.  CE marked and Certifire approved for single or double action fire doors for doors weights to 100kg and door widths up to 1100mm. Suitable for fire rated single or double action doors.

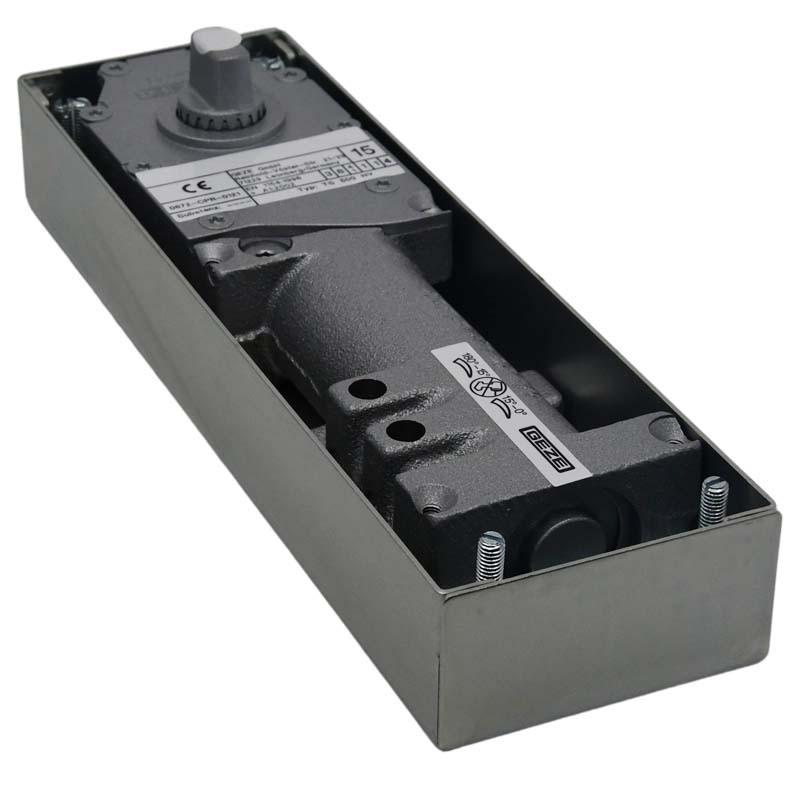

• Floor spring Cam Action mechanism with spindle and cement box

• Concealed floor design

• Non hold open function
• Complete with spindle and cement box
• Suitable for doors up to 100kg and 1100mm wide
• For external or internal doors
• Compatible with single and double action doors
• Backcheck
• Adjustable cam action spring size EN 1-4
• Adjustable closing speed and latching action
• All settings can be adjusted from the face of the spring when installed

• Maximum opening angle 170°
• Spring body adjustment range inside box: height 6mm, lateral 10mm, length 10mm
• Tested to EN1154
• CE marked
• Certifire Approved CF259
• Suitable for single or double action fire rated doors
  Timber fire doors up to FD60, E60, and EI60
  Steel fire doors up to FD240, E240, and EI240
• Dimensions: 278mm x 82mm x 42mm
