GEZE TS4000S Silver Power Size EN 1-6 Heavy Duty Overhead Door Closer with Back check & Delayed Action

GEZE TS4000S Silver Power Size EN 1-6 Heavy Duty Overhead Door Closer with Back check & Delayed Action

£105.60 GBP (Inc VAT)
£88.00 GBP (Ex VAT)
£105.60 GBP (Inc VAT)
£88.00 GBP (Ex VAT)
Sale Sold out
Taxes included.
Colour/Finish
Mechanical Hold Open Arm
Power Size

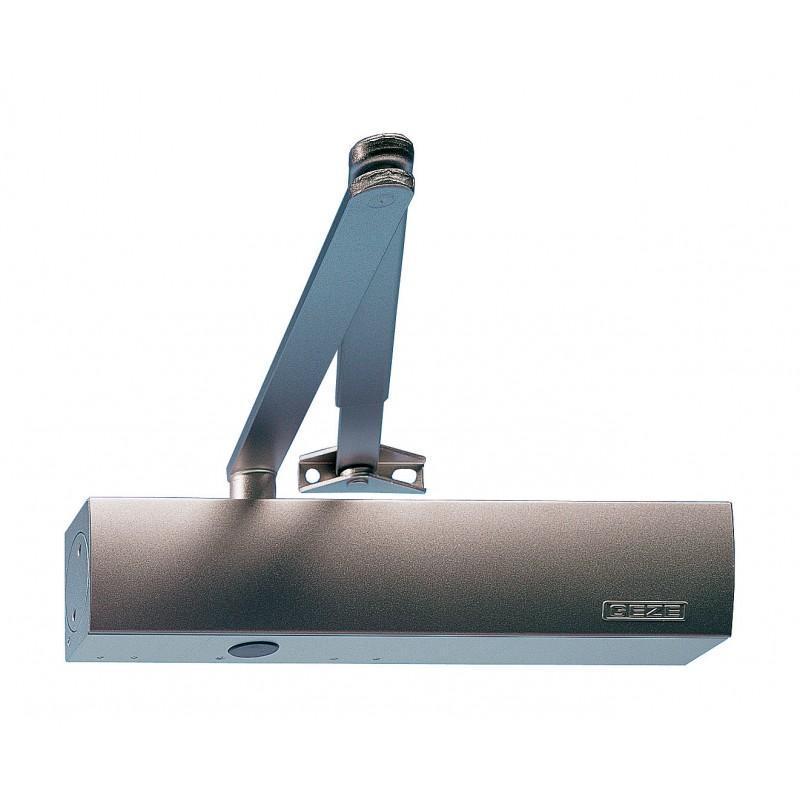

GEZE TS 4000 S is a robust and versatile overhead door closer designed for single-leaf doors up to 1400mm wide. It complies with EN 1154 and has a FD120 fire rating, with adjustable spring power sizes EN 1-6 and universal fitting applications.

Installation:

  • TS4000S EN1-6 – Suitable for doors up to 1400mm wide and 120kg
  • TS4000 EN5-7 – Suitable for doors up to 1600mm wide and 160kg
  • Fig. 1/61 – Pull side mounting/transom mounting
  • Fig. 66 – Push side mounting with PA Bracket

Product Features:

  • Backcheck function
  • Delayed closing action
  • Adjustable hydraulic latch action
  • Adjustable closing speed
  • Visual display of EN 1-6 spring force
  • Universal application installation
  • For single-action doors
  • Compatible with right hand and left handed doors
  • Suitable for interior and exterior doors
  • 120 minute fire rating for fire doors up to FD120
  • Fully certified to BS EN 1154
  • CE marked
  • Certifire Approved
  • Body dimensions: 287mm x 60mm x 46mm

Requiring a hold open door closer that is suitable for use on a fire rated door then take a look at the following options GEZE TS 4000 E electronic hold open door closer or a TS 4000 EFS electronic hold open door closer with swing free function.
