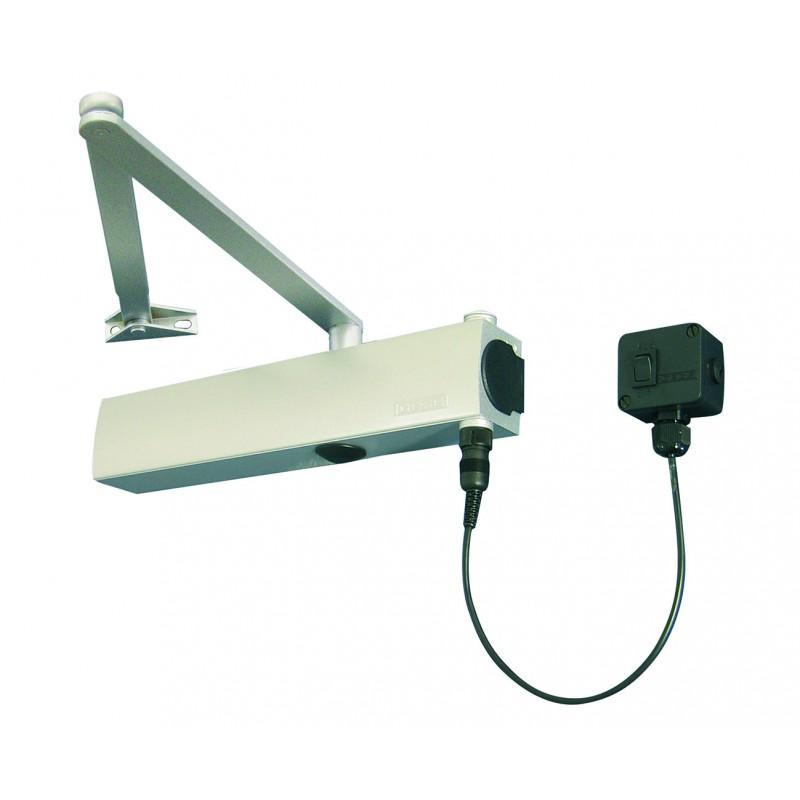

GEZE TS4000E Electromagnetic Door Closer with Hold Open Functionality

GEZE TS 4000 E is an overhead rack & pinion door closer for single-action doors up to 1400mm wide and 120Kg, with electronic hold open between 80 -170 degrees.  With adjustable closing force and closing speed, features an adjustable spring size EN 1-6.

Key Product Features:

• Hold open function
• Adjustable closing speed
• Mechanical latching action via link arm
• Visual display of spring forces EN 1-6

• 24V DC 45mA operating voltage
• Fig. 1 mounting - pull side mounting
• Adjustable spring size EN 1-6
• Maximum opening angle of 180 °
• Hold open function between 80 ° and 180 °
• Fully certified to BS EN 1154 and BS EN 1155
• CE marked
• Certifire Approved
• For single-action doors
• Suitable for door leaves up to 1400 mm wide
• Door weight up to 120kg

• 120 minute fire rating for fire doors up to FD120
• IP43 rated
• Body dimensions 325mm x 60mm x 48mm
