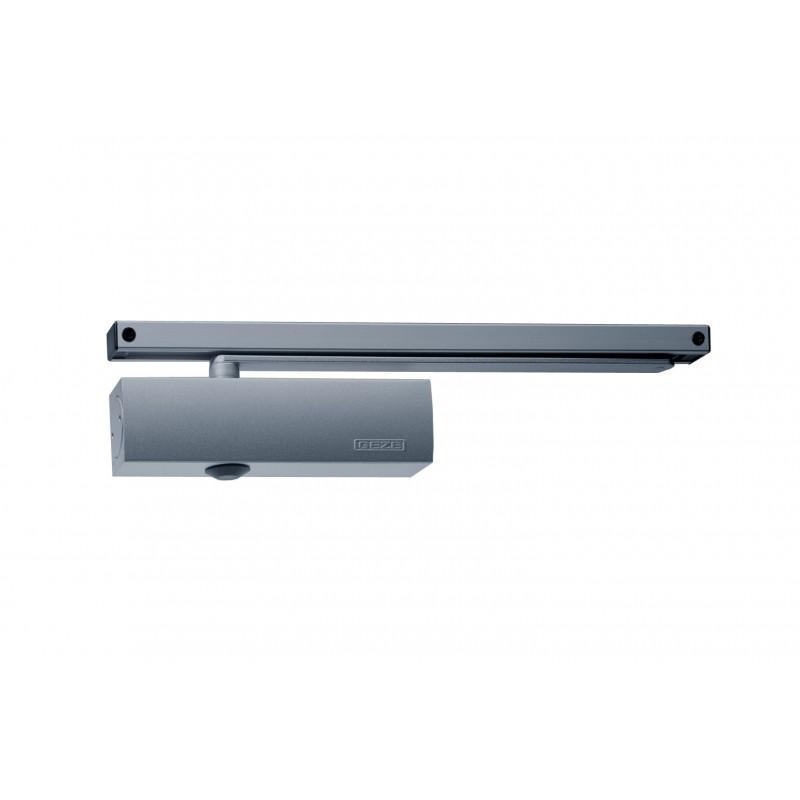

GEZE TS3000VE electromagnetic hold open door closer.

GEZE TS3000VE EN 1-4 Guide Rail surface mounted rack and pinion Electromagnetic Hold Open Door Closer, for use on right and left handed single action door leaf widths of up to 1100mm, Fire Rated, CE stamped, Certifier approved CF 145 and It is also tested to BS EN1154 and BS EN1155.

• Electromagnetic Hold Open
• Adjustable spring EN 1-4
• Suitable for Fig 1 (pull side) mounting
• Meets DDA Compliance

• Suitable for single action doors up to 1110mm wide and up to 80Kg
• Certified to BS EN 1154, BS EN 1155 and CF145 certificate
• Suitable for fire doors – FD 120 minute fire rating
• Adjustable hydraulic latch action and closing speed can be sent from the front

• 24V DC 130mA operating voltage
• Electromagnetic hold open angle 80° - 130°
• Body dimensions: 226mm x 46mm x 60mm
• E guide rail dimensions: 498.5mm x 40mm x 30mm
