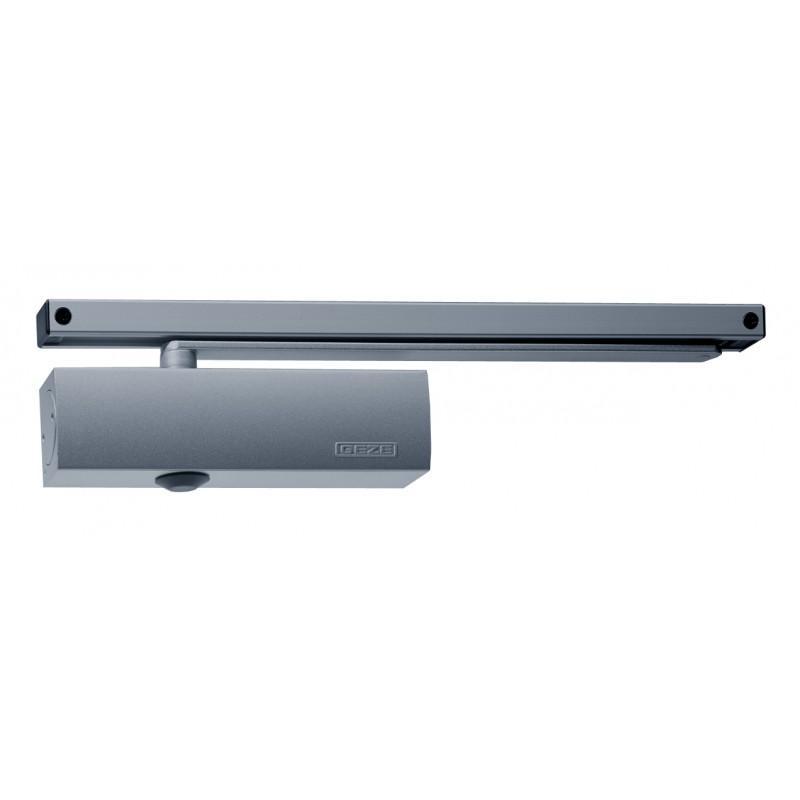

GEZE TS3000V Slide Arm Door Closer

GEZE TS3000V door closer is a surface mounted rack and pinion door closer with guide rail which is for use on single action doors with leaf widths of up to 1100mm. It's CE marked and Certifire Approved to CF 145. Spring adjustable size EN 1-4 and comes with adjustable closing speed and latching action and approved to EN 1154.

• Guide rail for smooth door operation
• For single action doors with door leaf widths up to 1100mm and up to 80Kg
• Can be fitted either on both right and left hand doors without conversion

• Adjustable spring size EN 1-4
• Installation options:
  Fig. 1 -Pull side fixing
  Fig. 6 - Push side transom mounting fixing


• Certified approved to BS EN 1154 - CF145
• CE marked
• Timber fire rated doors up to FD120 minutes
• Steel door fire rated up to FD240 minutes
• Hydraulic latch action and closing speed adjustment
• All functions can be adjusted from the front of the door closer when fixed
• Body dimensions: 226mm x 46mm x 60mm
• Guide rail dimensions: 448.5mm x 30.5mm x 20.5mm
