GEZE Slimdrive EMD-F Swing Single drive system with arm and cover

GEZE Slimdrive EMD-F swing door drive system, electromechanical swing door system for single leaf fire and smoke protection doors.

Closing force with variable adjustment of EN 4-6
Opening and closing speed can be individually adjusted
Mechanical latching action when operated without current, and electrical latching action in regular operation, which accelerates the door shortly before the closing position.
Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety demand.
Obstacle detection detects an object through contact an stop the opening or closing process
Automatic reversing detects an obstacle and returns to the opening position
Push and Go function triggers the automatic drive following light manual pressure on the door leaf.

Application Area
Fire and smoke protection doors
Single-action, single leaf, right and left closing doors
Single-action doors up to 1400mm leaf width or 230 Kg weight
Interior and exterior doors with high access frequency
Door leaf installation and transom installation

Information

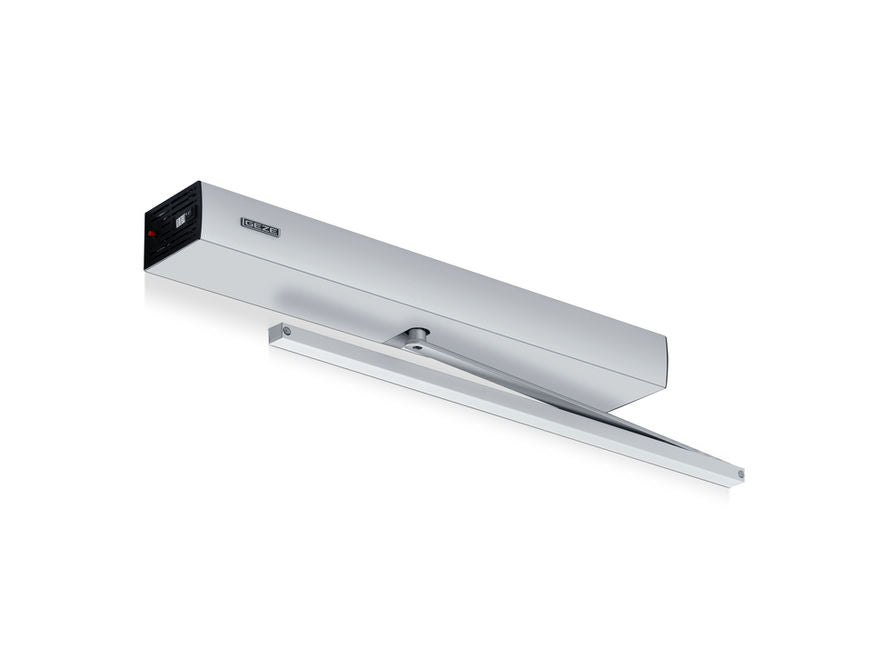

Geze EMD-F Swing Single Push (0-100 reveal)

Includes

Slimdrive EMD-F Swing drive unit
Drive unit Mounting Plate
EVI Silver cover
EMD-F/ EMD V arm Push

Geze EMD-F Swing Single Pull

Includes

Slimdrive EMD-F Swing Drive Unit
Drive Unit Mounting Plate
EVI Silver Cover
EVI Silver Guide rail
