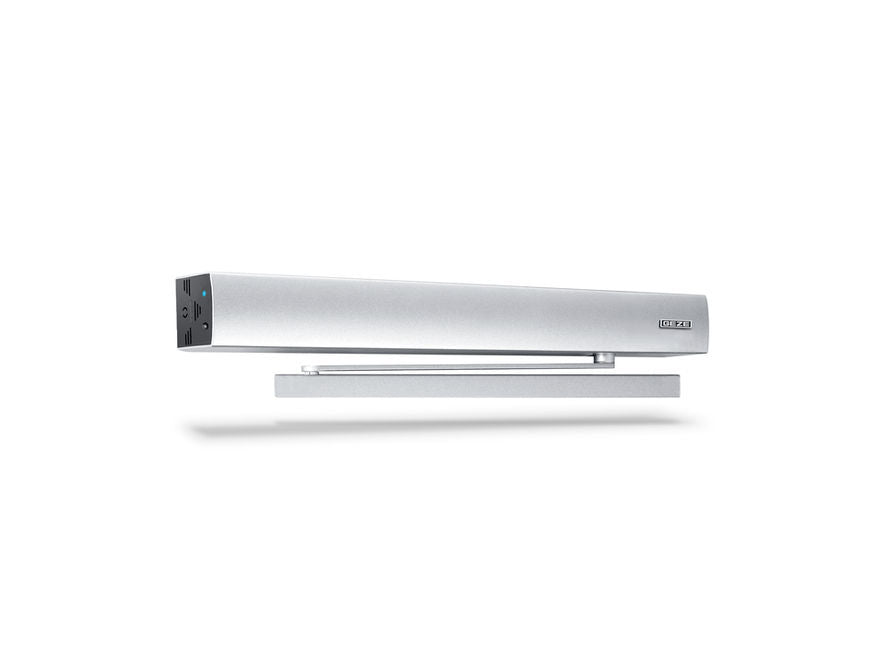

Geze ECturn swing door drive system

GEZE ECturn Electromechanical swing door drive for accessible single leaf doors weighing up to 125 kg

Opening and closing speed can be individually adjusted
Electrical latching action which accelerates the door shortly before the closed position
Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety demands
Obstacle detection detects an object through contact and stops the opening or closing process
Automatic reversing detects an obstacle and returns to the opening position
Push & Go function triggers the automatic drive following light manual pressure on the door leaf
Drive can be used with guide rail or link arm
Glass guide rail available for use on glass doors with a glass thickness of 8-10 mm
Optional rechargeable battery provides maximum safety during a power failure
Optional radio reception board for wireless activation by radio transmitter

Application Areas

Single-action, single leaf, right and left closing doors
Single-action doors up to 1100 mm leaf width or 125 kg weight
Entrance and interior doors with moderate access frequency
Automation of frameless all-glass doors
Door leaf installation and transom installation
Barrier-free access
