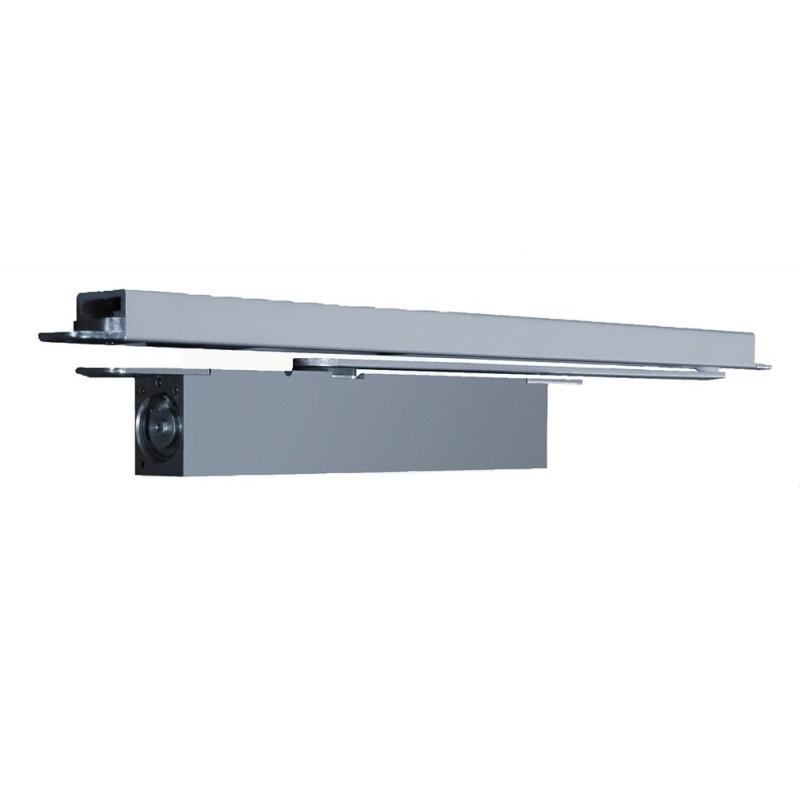

GEZE Boxer EN 2-4 Concealed Electromagnetic Hold Open Door Closers

The GEZE Boxer E is an integrated concealed door closer available in single or double action application. It is CE marked and Certifire Approved CF 242 has EN 1155 and EN1154 when used with the applicable intumescent materials. This concealed closer is supplied complete with intumescent fire packs which ensure that you have everything you require to install this closer.

The closing force is tested to EN 1154 EN 1155 is a adjustable spring power size EN 2-4 and comes with adjustable closing speed, latching action and backcheck, so you can adjust it according to the requirements of the door. The Boxer concealed door closer is suitable for a wide range of applications where a less visible door closing device is required. Note the minimum door thickness required is 40mm for non fire doors and 44mm for fire doors.

Key Product Features

• Two models available:

          Boxer E: Suitable for single action doors
          Boxer P: Suitable for double action doors

• Can be used for right and left handed swing doors
• For fire and smoke protection doors it must be fitted with intumescent
• Supplied complete with e-guide rail and intumescent
• The double action model is also supplied with smoke seal
• Electromechanical solenoid hold open device is within the guide rail
• 24V DC 130mA operating voltage
• Hold open range 80°-120°
• Maximum opening angle 120°
• Adjustable power size EN 2-4
• Suitable for door leaf widths up to 1100mm
• Adjustable closing force
• Adjustable closing speed
• Adjustable hydraulic back check
• Valve adjustable latching action
• Body dimensions: 286mm x 32mm x 45mm
• E-guide rail dimensions: 4400mm x 31mm x 30mm
