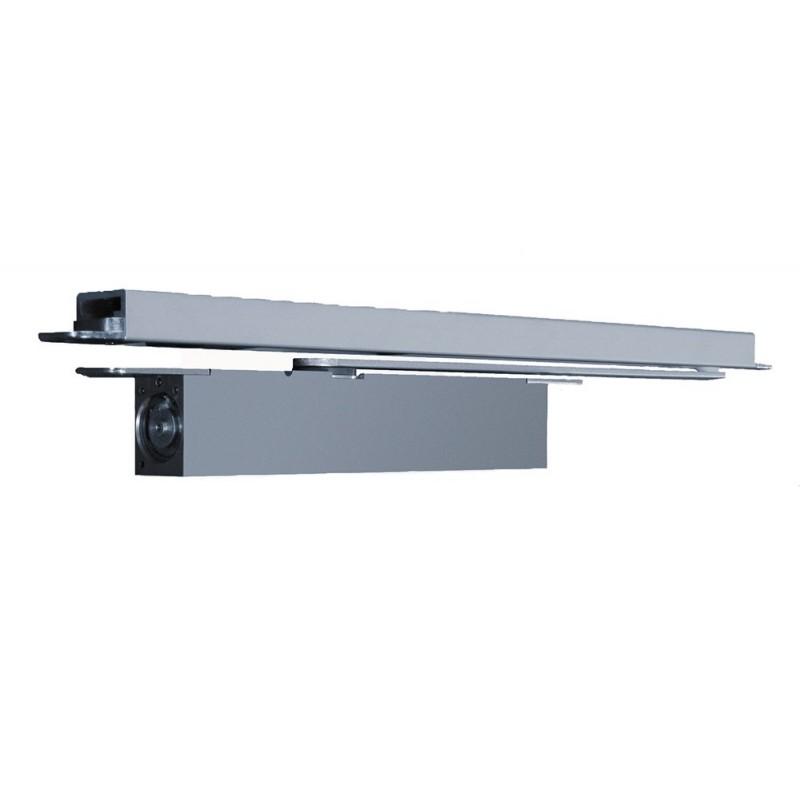

GEZE Boxer EN 2-4 Concealed Door Closer

The GEZE Boxer EN 2-4 is an integrated concealed door closer available in single or double action models. It is CE marked and Certifire approved CF 242 when used with the applicable intumescent materials – simply select the fire rated version when ordering.

The closing force to EN 1154 is a variable power size EN 2-4 so you can ensure it’s just right for your door and it comes with adjustable closing speed, latching action and backcheck. It is suitable for a wide range of applications where a less visible door closing device is required. Note the minimum door thickness required is 40mm for non fire doors and 44mm for fire doors.

Key Product Features:

• Complete concealment when the door is closed
• Vandal resistant
• 30 minute and 60 minute fire rating - fire rated models only
• DDA compatible – when fitted correctly
• Tested in accordance with EN 1154
• CE marked
• Certifire approved
• Adjustable closing force EN 2-4
• Adjustable closing speed
• Adjustable hydraulic backcheck
• Hydraulic latching action
• Easy adjustment of functions
• Suitable for doors with up to 1100 mm leaf width
• Suitable for doors up to 130kg
• Suitable for right and left handed doors
• Single action doors
• Double action doors
• Complete with guide rail
• Opening angle 120 °
• Dimensions: 286mm x 32mmx 45mm
