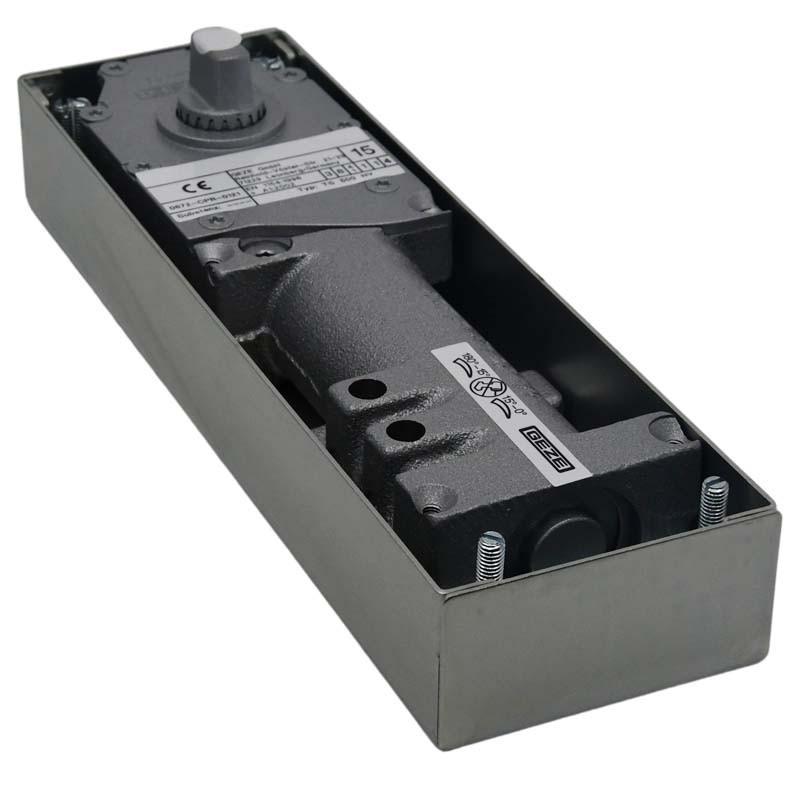

GEZE TS 500 NV EN 1-4 Cam Action Floor Spring Mechanism Only

The GEZE TS 500 NV floor spring is an adjustable door closer with backcheck and cam action technology. It is designed for internal and external doors in commercial and public buildings. It has adjustable power size EN 1-4, latching action, and closing speed to support doors up to 150kg and 1100mm wide. This floor spring can suit single or double action doors making it a versatile solution.

The TS 500 NV is CE marked and Certifire Approved CF259 suitable for fire rated doors when installed with the appropriate intumescent kit.

It comes complete with a spindle, cement box, and installation instructions. Accessories, including cover plates, top pivots, bottom straps, and intumescent kits, are available separately.

Key Product Features:

• Floor spring mechanism only
• Concealed design
• Overall height 42mm
• Non hold open function
• Complete with spindle and cement box
• Suitable for doors up to 150kg and 1100mm wide
• For external or internal doors
• Compatible with single or double action doors
• Backcheck
• Adjustable power size EN 1-4
• Adjustable closing speed and latching action
• All settings can be adjusted from above when installed

• Maximum opening angle 170°
• Large adjustment range inside box: height 6mm, lateral 10mm, length 10mm
• Tested to EN1154
• CE marked
• Certifire Approved CF259
